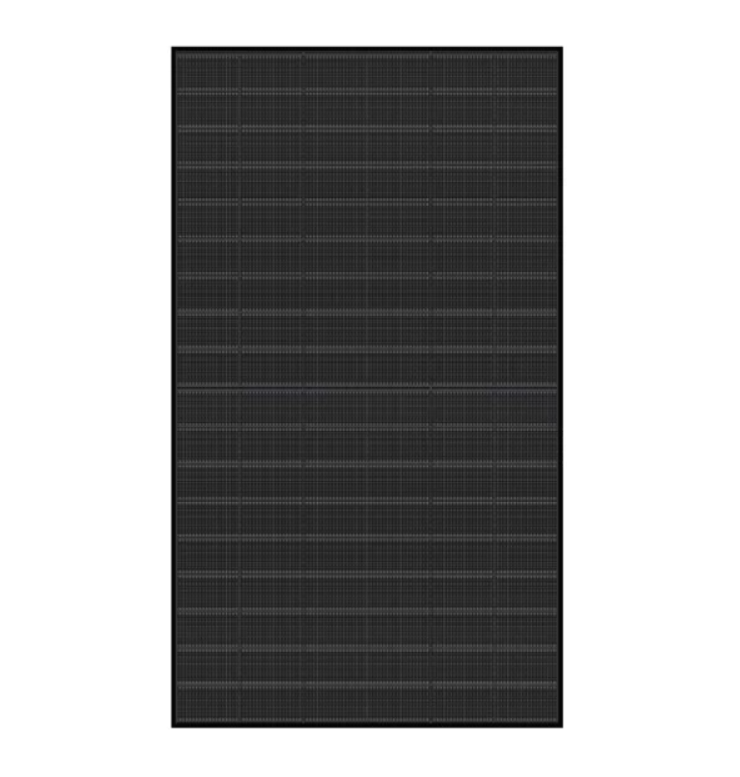

HiT-H450LE-FB is an advanced N-type HJT (Heterojunction) photovoltaic module that combines high efficiency with durability. With its innovative cell technology and robust design, it is the perfect solution for residential and commercial installations.
Features:
- Module packaging: 36 per pallet – 936 per container
- Dimensions: 1762 mm (L) x 1134 mm (W) x 30 mm (H).
- Weight: 21.6 kg
- Output cables: 4mm² / 12AWG / (+)1250 mm, (-)1250 mm / custom length.
- Connector: MC4 / MC4-Evo2 / MC4-Evo2A / PV-H4 / Z4S-abcd / PV-ZH202B
- Type N HJT solar cells, 96 (6×16) monocrystalline bifacial semiconductor cells
- Connecting box 3-part, 3 bypass diodes, IP68 rating
- Black anodized aluminum alloy frame
- Nominal operating temperature of the module 44 ℃ ± 2 ℃
- Operating temperature -40 ℃ ~ +85 ℃
- Maximum system voltage DC 1,500 V
- Maximum reverse current 30A
- Maximum test load Front 5,400Pa / Rear 2,400Pa
- Warranty: 30 years for product and performance
