Beschreibung

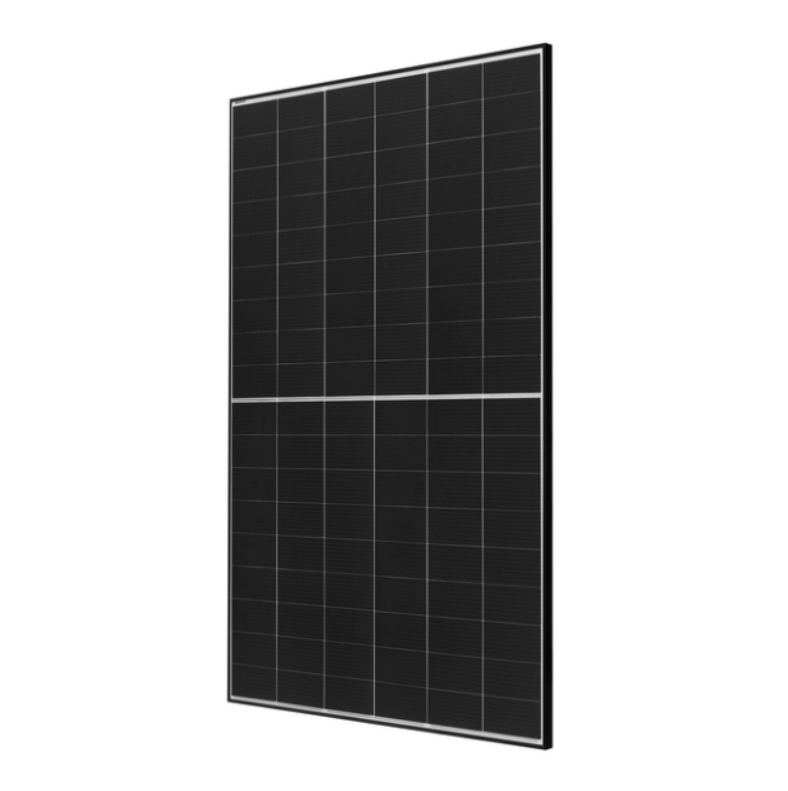

Aiko-A465-MAH54Mw
AIKO’s White Hole series photovoltaic panels have Type N cells and use All Back Contact technology. The All Back Contact technology provides a lower temperature coefficient, higher resistance to low and high temperatures, resulting in great performance and durability of the panels. The front side of the cells has no electrodes, resulting in higher light absorption.
Features:
- 15-year product warranty, 30-year performance warranty
- High module aesthetics with no visible connectors
- Slower degradation
- Rated power Pmp: 465Wp
- Maximum system voltage: 1500V
- Power tolerance: 0 ÷ +5W
- Voltage for max power Ump: 33.80V
- Current for max power Imp: 13.76A
- Voltage without load Voc 40.79V
- Short-circuit current Isc: 14.51A
- Max. stringless insertion: 25A
- Module efficiency: 23.3%
- 6×18 cells (108 cells); monocrystalline type -N, ABC
- Dimensions of the module: 1757 * 1134 * 30mm
- Glass thickness: 3.2mm
- Maximum load: 2400 / 5400Pa
- Weight: 21.5kg
- IP68 junction box with 3 bypass diodes
- Connection Solar wires 4mm2 2×1,2m with EVO2 connectors
- Operating temperature range -40 ÷ +85°C
- Number of modules per pallet: 36 pcs.
